Description
Beschrijving:
Afmetingen: 57 x 40 mm
Voedingsspanning: 5V

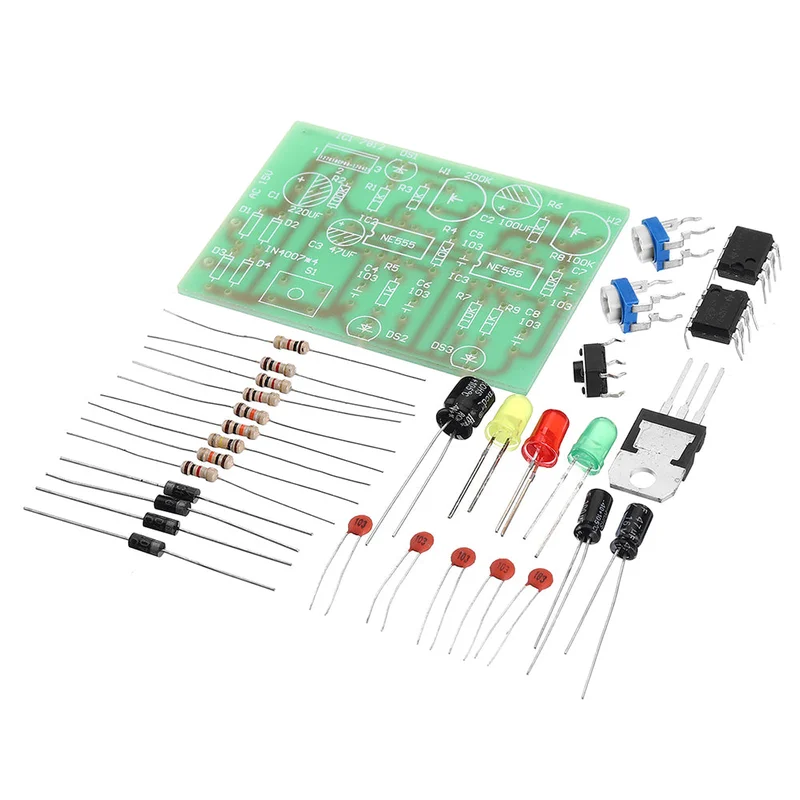

| Naam | Parameter | PCB-markering | Aantal stuks |
| Weerstand | 1K | R1 R3 R5 R6 R9 | 15 |
| 100K | R2 R4 | 6 | |
| 10K | R7 R8 | 6 | |
| Diode | 1N4007 | VD1-VD4 | 12 |
| Elektrolytische condensator | 220uF | C1 | 3 |
| 100uF | C2 | 3 | |
| 47uF | C3 | 3 | |
| LED | 3mm rood | LED1-LED3 | 9 |
| Tact schakelaar | 6×6 | S1 | 3 |
| Verstelbare weerstand | 200K | W1, W2 | 3 |
| IC | LM7812 | IC1 | 3 |
| 588.166 | IC2, IC3 | 6 | |
| Keramische condensator | 103 | C4-C8 | 12 |
| PCB | 3 |
Pakket inbegrepen:
